96*96 Moving Iron Instrument Analogue Panel Meters / AC Ammeter

Description :

This DT series of meters is a direct imitation of power measurement display instruments, measuring DC current and voltage, AC current and voltage, frequency, power factor, phase sequence, power, synchronization instructions and other non-power measurements. It has been widely used in a variety of AC and DC transmission and distribution systems, power control panels and other electrical devices, in the industries of maritime shipping, rail transport, chemical flameproof, low voltage equipment, construction equipment, generators, machinery equipment, etc. Being able to make electrical measurement and non-power measurement, it is a high-end instrument applied in general environmental conditions.

Reference Standards:

EN60051,EN50081,EN50082,EN61010,IEC60051,IEC1010,DIN43780

Auxilary power supply :

The accepted tolerance for nominal values of the auxiliary power supplt is:Voltage:+10%~-15% Frequency:45Hz~65Hz

Zero Correction :

A zero corrector is provided on the front panel of the meter,which can adjust the pointer to the zero position.

Casing :

The casing and frames for all instruments are made of self extinguishing ABS,according to UL94,with high impact resistance.

The bases are made from self extinguishing reinforced PPO,according to UL94,with high impact resistance and maximum electrical insulation.

Specification :

Features :

1. Product Name: Direct Input AC Ammeter, Direct AC Ammeter

2. Model: DT-DA96,DT-DA72,DT-DA48

3. Accuracy: Class 1.5.

4. Specification: 0.1A 0.5A 1A 7.5A 10A 15A 20A 25A 30A 40A 50A 60A 75A 100A . For 5A-10KA use external current transformer with secondary current 5A and 1A.

Notes: For 60A, 75A, 100A meters, when these meters directly connected to circuit, their accuracy is class 2.5. For 20A-60A direct reading ZZ-48 meters, the accuracy is class 2.5.

5. Heat resistance: Case of non-combustible plastic Material.

6. Changeable scale: All scales with printing technique. The dial plate with different scale, which is at the same division and internal value, can be changeable. But the accuracy is unchangeable.

7. Fastening: By means of nuts, absolutely safe, fast, robust, side-by-side.
Mounting depth: Max. 43mm.

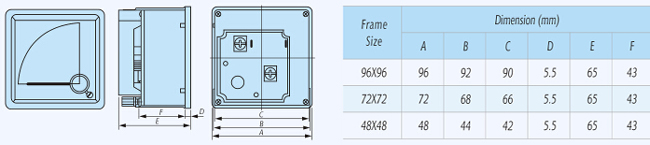

Dimension :
