YUEQING YOMIN ELECTRIC CO., LTD Professional energy meter and current transformer manufacturer
10 Years
| Ask Lasest Price | |
| Brand Name : | YOMIN |
| Model Number : | YEM021EI |
| Certification : | CE/ROHS |
| Price : | negotiation |
| Payment Terms : | T/T or western Union |
| Supply Ability : | 10000pcs per month |
| Delivery Time : | 5-30 working days after receiving payment |
20 / 100A Electric Din Rail Three Phase Energy Meter , 7P Watt Hour Meter
Product Description
Model YEM021EI three phase four wire electronic DIN rail active energy meter is a kind of new style three phase four wire active energy meter, it adopt micro-electronics technique, and imported large scale integrate circuit, use advanced technique of digital and SMT techniques, etc. The meter completely accord with relevant technical requirements of class 1 three phase active energy meter stipulated in international standard IEC 6205321.
It can accurate and directly measure 50Hz or 60Hz active energy consumption from three phase four wire AC electricity net. This meter has seven digits LCD displays shows the active energy consumption. Contact with all kind of AMR system conveniently It has following features: good reliability, small volume, light weight, specious nice appearance, convenient installation, etc.
Specification
Model | Accuracy | Reference Voltage | Current Specification | Starting Current | Insulation Performance |
YEM021EI | Class 1 | 3x127/220V 3x230/400V | 10(40)A; 15(60)A; 20(80)A; 30(100)A | 0.02A 0.04A 0.08A | AC voltage 4kv for 1 min, 1.2/50us waveform impulse voltage 6kv |
* If you need different reference voltage or current specification, please advisory our sales personnel.
Competitive Advantage
35mm standard DIN rail installation , complying with standard DIN EN50022.
Ten pole width (Modulus 12.5mm), complying with standard JB/T7121-1993.
Type S wiring (Type U).
Seven digits display LCD, 6+1 digits display (999999.1 kWh) .
There are a polarity port of pulse output passive closed and a nonpolarity port of pulse output
passive distant . Complying with standard IEC 62053-31 and DIN 43864.
5 LED instructions respectively every power supply state, signal of closed energy impulse and
distant energy impulse and data communication state.
Automatic detection the direction of the flow of load current. And Instructions on individual LCD
Single direction three components measure three phase four wire active energy consumption.
It is nothing with direction of the flow of load current. Complying with standard IEC 62053-21.
Standard configuration short terminals cover, may select extension terminals cover,
in order to protect to use safety.
Dimension

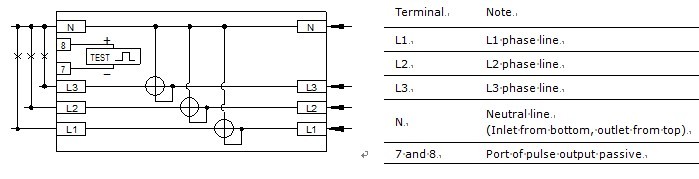

Wiring Diagram
Our Services
1. Best quality mechanical & electronics parts are use for long
working life of the electrical appliances.
2. All of our products have proceeded aging test,and products have
the guarantee period of 13 calendar months.
3. All product parts of electrical are made-up green safety grade
materials.
4. The fast and flexible production form aim at the customer
require ,Stringent quality control to ensure 100% customer
satisfaction
5. we provide you one to one service.
|
|
