Indoor LM-0.5 Ring Type Current Transformer , 600/5A Power Miniature Current Transformer

Description:

• Model NO.: LM-0.5
• Type: Current Transformer
• Operation Condition: Indoor
• Insulating Medium: Insulating Paper
• Magnetic Circuit Structure: Cascade Type
• Rated Voltage: 500V
• Rated Frequency: 50Hz
• Customized Design: Yes
• Transport Package: 16 PCS/Carton
• Origin: Wenzhou Zhejiang

• Application: Electronic, Instrument
• Phase: Single
• Usage: Protection
• Installation: Active Type
• Voltage Transformation Principle: Electromagnetic Type
• Rated Secondary Current: 5A
• Secondary Load Power Factor: 0.8(Delay)
• Trademark: PEOPLE
• Specification: CCC
• HS Code: 850431100

Application
LM-0,5 series indoor current transformer, it's used in the circuit, 50Hz, rated voltage 500V. For measurement of instruments, meter or relay protection, control device to transport signal, and measure, protect & control device to isolate from high voltage.

Normal working & installment conditions
1.Temperature: -5ºC~+40ºC
2. Humidity: ≤80%
3. Altitude: ≤1000m
4. Mounting place: indoor place without metal dust or obvious shock

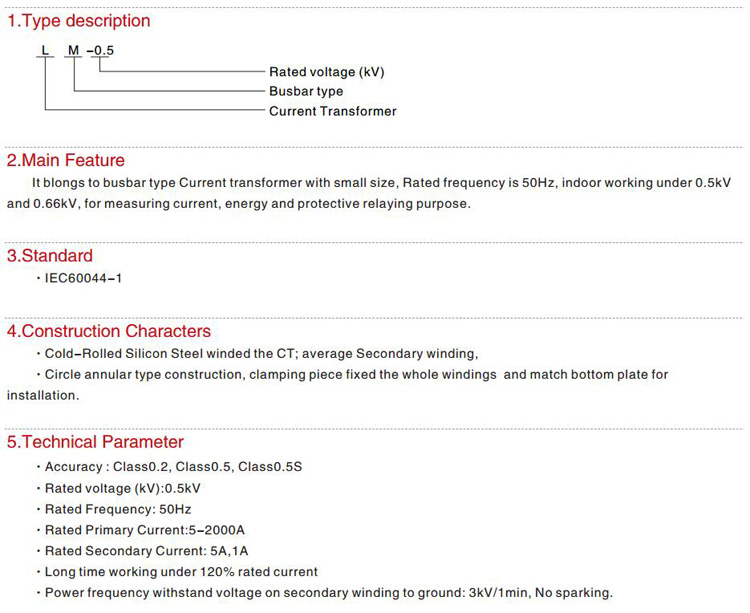

Specification
