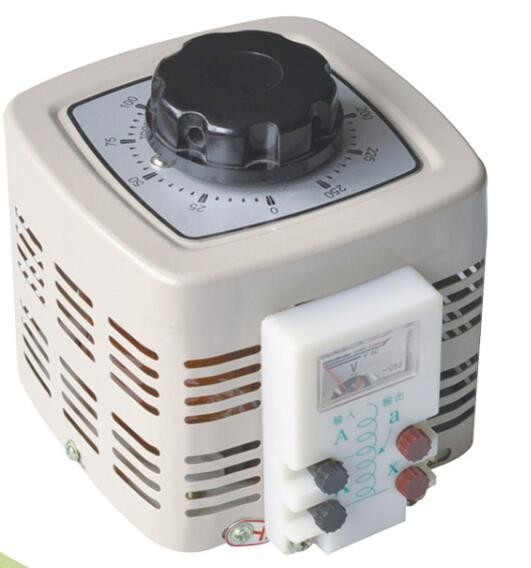

    TDGC2-3 Single Phase AC Variac Digital Variac , Variable Output Transformer

    Ask Lasest Price
    Brand Name : YOMIN
    Model Number : TDGC2 - 3
    Certification : IEC ROHS ISO
    Price : it can negotiate
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 5000 pcs/month
    Delivery Time : shipped in 2-5 days after payment depend on the quantity
    • Product Details
    • Company Profile

    TDGC2-3 Single Phase AC Variac Digital Variac , Variable Output Transformer

    TDGC2 - 3 Single Phase AC Variac Digital Variac, Variable Output Transformer


    TDGC2-3 Single Phase AC Variac Digital Variac , Variable Output Transformer


    Product Description

    The Voltage regulators (Variac) are used to adjust the voltage from 0 volts up to


    the maximum voltage for which they have been designed and among the most


    usuall applications. No additional wave from distortion. The main applications are:

    • Laboratory control equipment.
    • Lighting equipment.
    • Temperature controls.
    • Motor speed control.
    • Controlling of other transformers.
    • Etc.

    Manually Operated Rotary Knob to control output voltage, by means of a control


    button on the shaft of the voltage regulator (Variac) which allows to act on the


    brush and achieve the desired voltage. The voltage can be smoothly varied


    between turns as the brush has a relatively high resistance (compared with a


    metal contact) and the actual output voltage is a function of the relative area of


    brush in contact with adjacent windings.


    Technical parameters

    • Capacity......................................................3000VA
    • Output Current...........................................12A
    • Output.........................................................0~250V AC
    • Frequency..................................................50/60Hz
    • Input............................................................220V AC
    • Insulation Resistance...............................>5MΩ
    • No. of Phase..............................................Single-Phase
    • Winding Material.......................................100% Copper
    • Max.Temperature......................................60℃
    • Insulation Class.........................................Class B (130℃)
    • IP/NEMA Rating..........................................IP20
    • Variable Operation....................................Manually Operated Rotary Knob
    • Portable Carrying Grip.............................Provided
    • Pollution Rating.........................................Class III
    • Analog Voltmeter Display........................Provided
    • Housing Material.......................................Shock-Proof Metal
    • Voltage Setting.........................................Manual Control
    • Standards...............................................VDE0550,IEC204-1,IEC61588,EC439
    • Sample Service........................................Pay to Provide
    • Quality Assurance...................................18Months
    • Item Condition.........................................Brand-New

    ItemCapacity

    Input

    Voltage

    Output

    Voltage

    Output

    Current

    Case

    Qty.

    Model(kVA)(V)(V)(A)(Pcs.)
    TDGC2-0.20.22200~2500.812
    TDGC2-0.50.52200~25026
    TDGC2-112200~25044
    TDGC2-222200~25084
    TDGC2-332200~250122
    TDGC2-552200~250201
    TDGC2-7.57.52200~250301
    TDGC2-10102200~250401
    TDGC2-15152200~250601
